Description
nvg goggles AGM NVG-50 NW1 Night Vision Binocular Gen 2+AGM NVG 50 NW1 Night Vision Goggles Binocular Dual Tube White Phosphor Gen 2+ "Level 1" 14NV5122484011 The AGM NVG 50 is a dual channel night vision system designed with optics that provide a wider 51 field of view, though with slightly reduced eye relief. Constructed with a durable, compact composite housing, it features advanced multi coated optics for enhanced performance. The device can be equipped with either a Gen 2+ or Gen 3 high performance
AGM NVG-50 NW1 Night Vision Goggles/Binocular Dual Tube White Phosphor Gen 2+ "Level 1" 14NV5122484011
The AGM NVG-50 is a dual-channel night vision system designed with optics that provide a wider 51° field of view, though with slightly reduced eye relief. Constructed with a durable, compact composite housing, it features advanced multi-coated optics for enhanced performance. The device can be equipped with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT), while a bright light cut-off feature protects the high-quality photocathode tube from damage.
The NVG-50 is also fitted with Manual Gain Control, allowing users to adjust image brightness for optimal quality in varying light conditions. Powered by a single AA alkaline battery or a CR123A battery, it can operate for up to 20 hours. Additionally, it includes a built-in infrared illuminator for reading or close-range activities in complete darkness.
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
AGM NVG-50 NW1 Features:
- Redundant dual-tube design
- True stereoscopic vision
- Wide 51° field of view
- Lightweight & compact

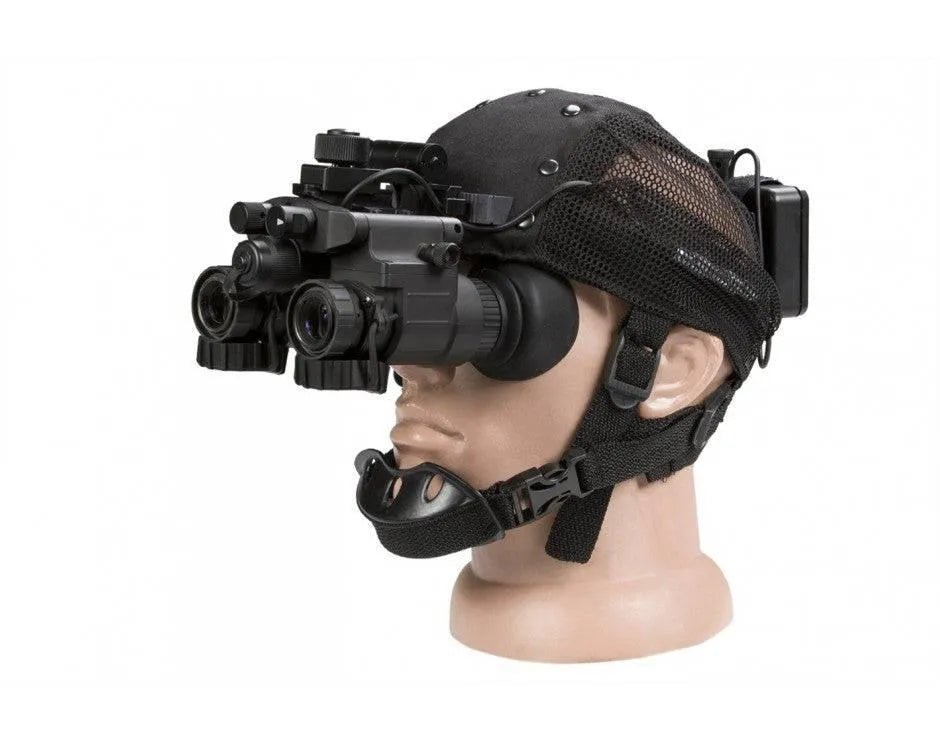

- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- Limited 3-year warranty
|
Gen2+ Lvls |
NL1/NW1 - Gen2+ Lvl1 |
NL2/NW2 - Gen2+ Lvl2 |
NL3 - Gen2+ Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls |
3NL1/3AW1 - Gen3 Lvl1 |
3NL2/3AW2 - Gen3 Lvl2 |
3NL3/3AW3 - Gen3 Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
AGM NVG-50 NW1 Specifications:
Image Intensifier Tube
Gen 2 "White Phosphor Level 1"
Resolution
51-64 lp/mm
Field of view cleanness by zone
Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x (3x optional)
Lens System
19 mm; F/1.26
FOV
51°
Focus Range
0.25 m to infinity
Eye Relief
17 mm
Diopter Adjustment
-6 to +2 dpt
Led Indicators
Low battery; IR on; Excessive light conditions
Infrared Illuminator
Yes
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +50°C (-58°F to +122°F)
Weight
615 g (1.35 lbs)
Overall Dimensions
112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)
Package Includes:
- NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- Demist Shield (2)
- Sacrificial Window
- Soft Carrying Case
- Lens Tissue
- Packing Box
- Battery Adapter
- User Manual
